Author Topic: SMA Sunny Island, why, what, advantages and Install.  (Read 38659 times)
Tinbum
Hero Member
*****
Offline Offline

Posts: 1197


« Reply #30 on: September 20, 2014, 10:04:22 AM »

Ducts etc- This is what you sometimes have to foresee:

The little blighters cause no end of expensive damage



* mice.jpg (360.09 KB, 1024x576 - viewed 547 times.)
Logged

85no 58mm solar thermal tubes, 28.5Kw PV, 3 x Sunny Backup 5048, 3x Sunny Island 5048, 2795 Ah (135kWh) (c20) Rolls batteries 48v, Atmos wood gasification boiler, Brosley wood burner, 2000lt buffer tank and 250lt DHW
clockmanFR
Hero Member
*****
Offline Offline

Posts: 3584



WWW
« Reply #31 on: September 20, 2014, 12:04:51 PM »

Tinbum, you need several of these layabouts, we have 4.

Here is "Kiwi" advertising a New local tipple.



* P9160031a.jpg (107.76 KB, 676x507 - viewed 595 times.)
Logged

Everything is possible, just give me TIME.
todthedog
Global Moderator
Hero Member
*****
Offline Offline

Posts: 4390



« Reply #32 on: September 20, 2014, 12:34:24 PM »

We have a local one in town and until very recently it was still used. Watched a very swish BMW pull up and a respectable middle aged Madame get out and do her washing.
Suggested it to Mrs T who commented something about sex and travel!! hysteria

Logged

Kidwelly South Wales
clockmanFR
Hero Member
*****
Offline Offline

Posts: 3584



WWW
« Reply #33 on: September 27, 2014, 09:47:11 PM »

Ordered the Sunny Island 6.0h-11 and the Sunny Remote Controller.

Also got the 200a Shunt (60mv) on its way, thanks Paul.

The main fuse is the 250a breaker from Midnite.

Bits arrived for the Sunny Boy's.

2off 48v chargers now here, thanks knighty.

I now have to upgrade a few cables.  C.rap got a dig a new 10mm2 4 core in but only 45 meters for my 3500 SB.


* aaSI&SRC_12.jpg (10.58 KB, 500x460 - viewed 524 times.)

* aaSMA_Sunny_Island_Shunt.jpg (7.4 KB, 215x141 - viewed 465 times.)

* aaMNEDC175Lg_150.jpg (9.31 KB, 150x92 - viewed 469 times.)

* P9270976a.jpg (187.96 KB, 881x660 - viewed 488 times.)

* P9270979a.jpg (165.04 KB, 860x645 - viewed 492 times.)
Logged

Everything is possible, just give me TIME.
stephendv
Hero Member
*****
Offline Offline

Posts: 928



WWW
« Reply #34 on: September 28, 2014, 08:45:22 AM »

Congrats, you're well on your way!

You'll also need some sort of comms board for the Sunny Boys to reprogram them into off-grid mode.  ...or maybe take them to a local installer who can do it for you?
Logged

http://www.casanogaldelasbrujas.com
2.8kW PV, SMA Sunny Island 5048, 5 PzS 700 battery bank, stinky diesel.
camillitech
Hero Member
*****
Offline Offline

Posts: 5442



WWW
« Reply #35 on: September 28, 2014, 09:10:22 AM »

Aye CM,

and you'll need to plug in the cable before you start SDC,



I spent hours, nay days trying to configure my inverters before a nice man from 'Sun and Wind' helped me out. If you don't plug the data cable in first SDC doesn't recognize it. Now this may be perfectly obvious to folk used to 'puters but to me it wasn't  banghead



Good luck, Paul

Now I'm off to connect Harry up to the SI.

PS, will those chargers not cook your jelly batteries  Huh or are the for something else  Huh
Logged

http://lifeattheendoftheroad.wordpress.com/

'Off grid' since 1985,  Proven 2.5kW, Proven 6kW direct heating, SMA SI6.OH, 800ah Rolls, 8kW PV ,4xTS45, Lister HR2 12kW, , Powerspout pelton, Stream Engine turgo, 60 x Navitron toobs and a 1500lt store. Outback VFX3048 and 950ah forklifts for backup,
clockmanFR
Hero Member
*****
Offline Offline

Posts: 3584



WWW
« Reply #36 on: September 28, 2014, 10:28:53 AM »

Oh er?

Was going to use the Bluetooth piggy back board on to my SB's.
Got some Bluetooth boards on there way here.
Got a cheapo laptop with Bluetooth, and windows 7, SMA preferred software.

I read the stuff, and I need the Unlock code from SMA, but I will wait till I have all stuff to hand.

Paul, the chargers are either 60amp or 80amp, but I will have to test them down at the power station to see what they will draw on my present going down EDF connected cable, if things get warmish, then I will change to a 3phase connection from EDF, or I can swap over cables to a bigger one. So i need to do some testing.

 I have 1300ah of those gell batts, all connected up so they share the load exactly, all 16mm2 cable, all exactly the same length all the same connectors, soldered on 8mm dia eye bolt lugs.


* aaSbBluetooth.jpg (25.45 KB, 315x400 - viewed 483 times.)
Logged

Everything is possible, just give me TIME.
stephendv
Hero Member
*****
Offline Offline

Posts: 928



WWW
« Reply #37 on: September 28, 2014, 10:55:38 AM »

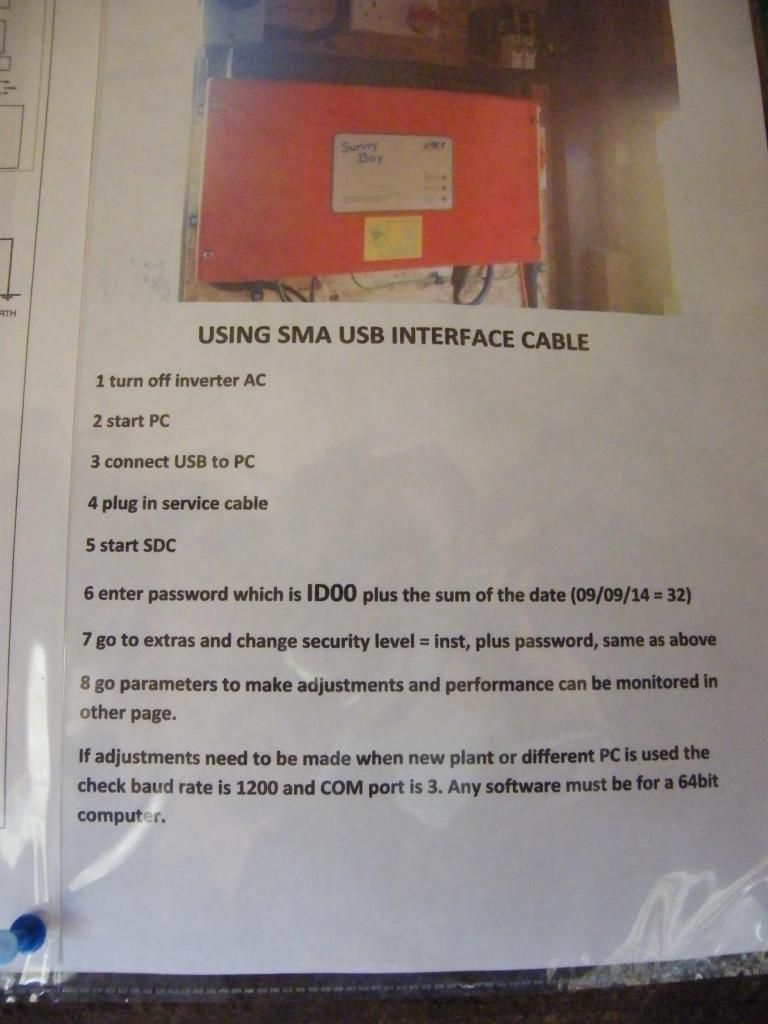

If the chargers aren't voltage limited then they could damage the batts.  It looks like paul already posted the unlock code for you in the picture above!
Logged

http://www.casanogaldelasbrujas.com
2.8kW PV, SMA Sunny Island 5048, 5 PzS 700 battery bank, stinky diesel.
clockmanFR
Hero Member
*****
Offline Offline

Posts: 3584



WWW
« Reply #38 on: September 28, 2014, 10:57:34 AM »

SSHH don't tell Biff.

Exterior canopy for the SI, yes all spaces around are to their distances SMA require, and the non combustible 2mm thick Galver steel mounting sheet.

Connectors bolt studs. The MCB is 100 amp for my present 3.7kW Inverter, this will get replaced, but the battery connections will remain.

Batteries, lots of these.

And lots of these, Sshh don't tell biff.



* P9280980a.jpg (164.46 KB, 860x645 - viewed 494 times.)

* P9280982a.jpg (150.73 KB, 819x614 - viewed 455 times.)

* P9280981a.jpg (140.65 KB, 819x614 - viewed 444 times.)

* P9280984a.jpg (123.88 KB, 614x819 - viewed 519 times.)
Logged

Everything is possible, just give me TIME.
stephendv
Hero Member
*****
Offline Offline

Posts: 928



WWW
« Reply #39 on: September 28, 2014, 11:01:02 AM »

Exterior canopy for the SI

I hope you meant the SB, not the SI!  The SB is outdoor rated, but not the SI, it'll need to be kept dry and out of the rain
Logged

http://www.casanogaldelasbrujas.com
2.8kW PV, SMA Sunny Island 5048, 5 PzS 700 battery bank, stinky diesel.
clockmanFR
Hero Member
*****
Offline Offline

Posts: 3584



WWW
« Reply #40 on: September 28, 2014, 11:04:40 AM »

Oh well, will put some doors on the canopy then, this side is protected from most of the weather, but have hassles with snow drifts.

Cheers about the Unlock code.  genuflect

As I say Stephen, I need to do some testing on those chargers.
Logged

Everything is possible, just give me TIME.
knighty
Hero Member
*****
Offline Offline

Posts: 2824


« Reply #41 on: September 28, 2014, 11:57:25 AM »

I've never taken it apart... but the 3 phase one is pretty dumb, I'm pretty sure it has 3 modes of charge, high, medium , low (for empty, half full, topping off)

(but of a guess going by the buzzing it makes, but there's a noticeable step in the buzzing noise as the batteries fill)

if you take the cover off, you could probably control those steps directly... or just disconnect one of them?
Logged
clockmanFR
Hero Member
*****
Offline Offline

Posts: 3584



WWW
« Reply #42 on: October 02, 2014, 05:38:07 PM »

Okay, knighty I have been messing with the Chargers. The 3 phase had the Live battery terminal catching on the case frame and the fuse is bust but still intact.

I prefer the 3 phase charger as its connections/cable size are about 4mm2 on input. The single phase charger is 10mm2 on input.

However the 3 phase also requires a neutral so that's 5 core cable if you include an Earth. But even so what's in place is a 4mm2 4 core including earth.  Although over here in France Earth tends to be a 1m rod banged in the ground, so I could do a earth at each end?

The 3 phase is 80a at a charging voltage of 48v, now my turbines can give a steady 60a with another 60a of PV. This 120a is regulating with controllers that back off, and Turbines that can dump excess.

So if you recall I can use the 80a from the charger as brute power to my batteries when the Sunny Island is pulling more than is going in. Yes the 1300ah batteries can handle a fair bit, but I like the idea of the 3 phase charger kicking in with its 80a.

Problem, Do I really need a neutral on the 3 phase, if I just want brute power, but looking at the transformer it has multi tapping's on the transformer coils and may require the neutral to switch in and out some of those tapping's?

 First 2 pics the 3phase charger.

Last pic is the single phase.


* PA020988a.jpg (176 KB, 691x922 - viewed 469 times.)

* PA020987a.jpg (170.16 KB, 707x942 - viewed 419 times.)

* PA020989a.jpg (193.88 KB, 707x942 - viewed 402 times.)
Logged

Everything is possible, just give me TIME.
clockmanFR
Hero Member
*****
Offline Offline

Posts: 3584



WWW
« Reply #43 on: October 09, 2014, 08:29:01 PM »

Not Good.....

I purchased a SMA Sunny Island SI 6.0H-11 & Sunny Remote Control SRC-20.

From This German Company…….   TeMo GbR     Frühlingsweg 1.     89431 Bächingen.

I paid them 3057,00 EUR.
I also purchased, on a separate small order a SMA Piggy Back Bluetooth  at  106.25 EUR.

According to TeMoGbR, SMA would not send these items to France as my French address does not exist/no such address.

The company won't refund, so much for me buying the proper stuff.

 surrender
Logged

Everything is possible, just give me TIME.
camillitech
Hero Member
*****
Offline Offline

Posts: 5442



WWW
« Reply #44 on: October 09, 2014, 09:08:12 PM »

Not Good.....

I purchased a SMA Sunny Island SI 6.0H-11 & Sunny Remote Control SRC-20.

From This German Company…….   TeMo GbR     Frühlingsweg 1.     89431 Bächingen.

I paid them 3057,00 EUR.
I also purchased, on a separate small order a SMA Piggy Back Bluetooth  at  106.25 EUR.

According to TeMoGbR, SMA would not send these items to France as my French address does not exist/no such address.

The company won't refund, so much for me buying the proper stuff.

 surrender


Dunno what mine was from Hugh in euro's but it was £2001 + VAT and here within a week. Includes his 24 hour helpline too  fingers crossed!

Sure the company has to refund by law does it not?

Good luck, Paul
Logged

http://lifeattheendoftheroad.wordpress.com/

'Off grid' since 1985,  Proven 2.5kW, Proven 6kW direct heating, SMA SI6.OH, 800ah Rolls, 8kW PV ,4xTS45, Lister HR2 12kW, , Powerspout pelton, Stream Engine turgo, 60 x Navitron toobs and a 1500lt store. Outback VFX3048 and 950ah forklifts for backup,
