Author Topic: A serious battery bank  (Read 16304 times)
camillitech
Hero Member
*****
Offline Offline

Posts: 5488



WWW
« on: December 12, 2012, 05:26:38 PM »

This is just one eighth of the LiFePo4 battery bank going into our new ferry, http://www.cmassets.co.uk/en/our-work/projects/current-projects/hybrid-ferries-project.html



 Cool  Cool

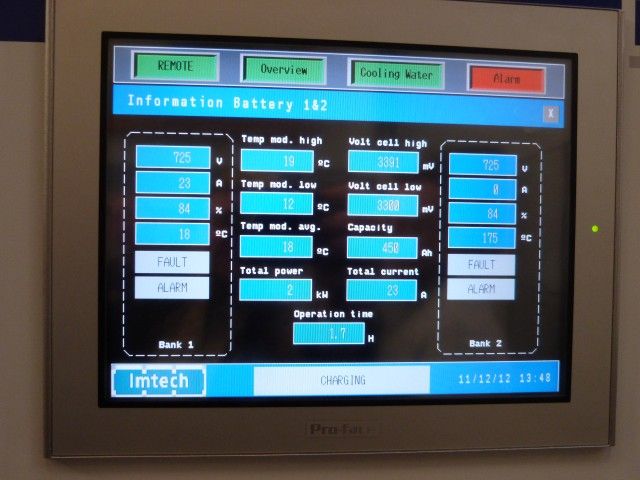

Just check out the voltage  norfolk

is that the ultimate 'off grid' bank or what  Grin

Boy you should see the inverters  Shocked methinks a few of those batteries may find a new home  whistlie.

Cheers, Paul
Logged

http://lifeattheendoftheroad.wordpress.com/

'Off grid' since 1985,  Proven 2.5kW, Proven 6kW direct heating, SMA SI6.OH, 800ah Rolls, 9kW PV ,4xTS45, Lister HR2 12kW, , Powerspout pelton, Stream Engine turgo, 60 x Navitron toobs and a 1500lt store. Outback VFX3048 and 950ah forklifts for backup,
desperate
Hero Member
*****
Offline Offline

Posts: 3544


Backache stuff!!


WWW
« Reply #1 on: December 12, 2012, 06:48:01 PM »

Blimey, don't drop a spanner across the terminals of that lot  sh*tfan

eDsp
Logged

www.jandhbuilders.co.uk

still a crazy old duffer!
Billy
Guest
« Reply #2 on: December 12, 2012, 08:21:51 PM »

Yo, Paul, are those batteries small or is the clock big?  Or maybe it's just hoptical lusion?   Grin
Logged
knighty
Hero Member
*****
Offline Offline

Posts: 2874


« Reply #3 on: December 13, 2012, 01:33:44 AM »

how many Ah altogether ?

also... any more photos ? the people on the electric bike forum will go mad for them... they use the same cell/pouch thingies for there bikes :-)
Logged
wookey
Hero Member
*****
Offline Offline

Posts: 3221


WWW
« Reply #4 on: December 13, 2012, 01:45:05 AM »

Wow - that looks expensive. 700kWH total it says. It says '2 banks'; you say that's 1/8th, which sounds like 8 racks. A bank != a rack?

Send the pics to endless sphere - they'll go potty over that lot :-)

I make that around 350,000 in batteries alone but I guess you get a good deal if you buy that that many, and prices have been falling steadily. Still maybe 200,000 though?

Excellent initiative - I hope it works nicely. Are you are going to be driving this thing (i.e is it _your_ ferry or just one of the company's ferries)?
« Last Edit: December 13, 2012, 01:47:31 AM by wookey » Logged

Wookey
camillitech
Hero Member
*****
Offline Offline

Posts: 5488



WWW
« Reply #5 on: December 13, 2012, 01:52:47 AM »

Hi Billy,

they are quite small http://www.europeanbatteries.com/, module number EB30 4S6P only 31Kg but 12v and 270Ah we're working on the bank tomorrow Knighty so I'll take some more pictures.

Cheers, Paul
Logged

http://lifeattheendoftheroad.wordpress.com/

'Off grid' since 1985,  Proven 2.5kW, Proven 6kW direct heating, SMA SI6.OH, 800ah Rolls, 9kW PV ,4xTS45, Lister HR2 12kW, , Powerspout pelton, Stream Engine turgo, 60 x Navitron toobs and a 1500lt store. Outback VFX3048 and 950ah forklifts for backup,
camillitech
Hero Member
*****
Offline Offline

Posts: 5488



WWW
« Reply #6 on: December 13, 2012, 02:03:13 AM »

Morning Wookey,

 your maths is just about spot on I'd say  Grin Yup, it is our ferry, though that bank and all the control system is in Holland at http://imtech.com/EN/corporate and belongs to ferry number two. Ours is being launched on Monday the 17th at http://www.fergusongroup.co.uk/shipbuilding/profile.aspx and I've got an invite  bike Mind you she's still around six months off commissioning and entering service on the route.



Cheers, Paul
Logged

http://lifeattheendoftheroad.wordpress.com/

'Off grid' since 1985,  Proven 2.5kW, Proven 6kW direct heating, SMA SI6.OH, 800ah Rolls, 9kW PV ,4xTS45, Lister HR2 12kW, , Powerspout pelton, Stream Engine turgo, 60 x Navitron toobs and a 1500lt store. Outback VFX3048 and 950ah forklifts for backup,
knighty
Hero Member
*****
Offline Offline

Posts: 2874


« Reply #7 on: December 13, 2012, 03:41:39 AM »

so... if it's a hybrid ferry...

props/thrusters etc.. will be run via electric motor...

for the power you'll need... you'll have to have a generator running all the time too ? (I'm guessing?)


so... why the need for the batteries ?  I thought most/a lot of ships these days ran generators and then electric motors for the props ? - more efficient etc.. because the engine can always be run at optimum rpm and no need for a crazy large gearbox etc... ?
(not that I really know anything about ships)
Logged
biff
Global Moderator
Hero Member
*****
Offline Offline

Posts: 12303


An unpaid Navitron volunteer who lives off-grid.


« Reply #8 on: December 13, 2012, 05:24:38 AM »

Paul,
      You must have the mother of all battery bank.I could do with one like that.No doubt your ferry will be extra busy with folks travelling back and forth but not getting off,,just wanting a tour of the battery bank,, hysteria.
     I would not mind getting up close to have a good look.
                                             Biff
Logged

An unpaid Navitron volunteer,who has been living off-grid,powered by wind and solar,each year better than the last one.
acresswell
Hero Member
*****
Offline Offline

Posts: 552


WWW
« Reply #9 on: December 13, 2012, 06:25:38 AM »

so... why the need for the batteries ?

So that Paul can drag an extension lead to work with him and charge up his Ferry via the Arnish Power company...  Grin

Might need a few more powerspouts....!
Logged

Building a new home in North Worcestershire
 see http://ecobodger.wordpress.com
Billy
Guest
« Reply #10 on: December 13, 2012, 07:36:42 AM »

Plug 'em in overnight to make use of all of Pauls excess production.   Grin

20% of the power comes from the batteries according to this;

http://www.cmassets.co.uk/en/our-work/projects/current-projects/hybrid-ferries-project.html
Logged
camillitech
Hero Member
*****
Offline Offline

Posts: 5488



WWW
« Reply #11 on: December 13, 2012, 05:41:06 PM »

Hi Knighty and all,

aye you're right for most of the time at least one generator will be running, but that is only a 330Kw generator suppling motors with the potential for 750Kw and it will shut down during periods of low demand. The plan is also for it to be able to run all of Sunday on batteries only (only two sailings). The 'power management system' is much like that on a good 'off rid' inverter in that it will start and stop generators as required using the batteries as storage/buffer.

I can't believe that I'm actually getting paid for this and put up in a hotel with swimming pool on the eighth floor  Shocked



today we've been learning how to replace or remove individual batteries,

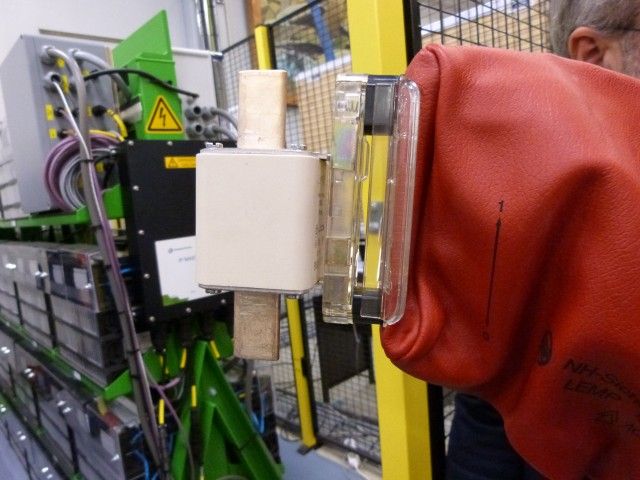

just check out that 315 amp fuse.



This will be the tool for removing it

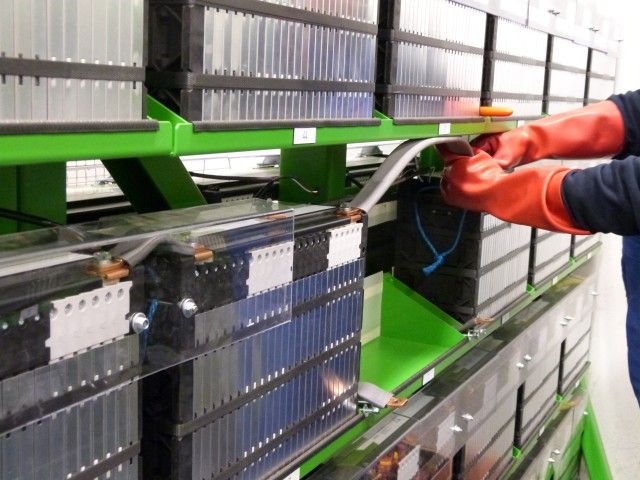

and this the method of bridging.

Sorry, gotta dash, it's time for dinner  Grin

Oh frack, I messed that post up, but you get the picture.
« Last Edit: December 13, 2012, 05:45:43 PM by camillitech » Logged

http://lifeattheendoftheroad.wordpress.com/

'Off grid' since 1985,  Proven 2.5kW, Proven 6kW direct heating, SMA SI6.OH, 800ah Rolls, 9kW PV ,4xTS45, Lister HR2 12kW, , Powerspout pelton, Stream Engine turgo, 60 x Navitron toobs and a 1500lt store. Outback VFX3048 and 950ah forklifts for backup,
kev
Newbie
*
Offline Offline

Posts: 37


« Reply #12 on: December 13, 2012, 06:04:45 PM »

Paul,
I bet that is going to be weird the first time you are sailing and working in the engine room when the genny decides to shut off and it all goes quiet.
You are sure to go and check if everything is alright, in fact the almost silent engine room of an electric ship is going to be very odd.

Kev
Logged
billi
Global Moderator
Hero Member
*****
Offline Offline

Posts: 9073



WWW
« Reply #13 on: December 13, 2012, 06:48:54 PM »

Nice to see , finally , long approved   ideas , seam to fruit

http://www.fischerpanda.de/products/eng/335.htm
Logged

1.6 kw and 2.4 kw   PV array  , Outback MX 60 and FM80 charge controller  ,24 volt 1600 AH Battery ,6 Kw Victron inverter charger, 1.1 kw high head hydro turbine as a back up generator , 5 kw woodburner, 36 solar tubes with 360 l water tank, 1.6 kw  windturbine
biff
Global Moderator
Hero Member
*****
Offline Offline

Posts: 12303


An unpaid Navitron volunteer who lives off-grid.


« Reply #14 on: December 13, 2012, 07:00:16 PM »

Too true Billi,
            Its a taste of things to come and the more they do it like this the cheaper and better the batteries and control systems will become.
     Its obviously been treated seriously and can only mean improvements in the long term,, fingers crossed!
                                                                      Biff
Logged

An unpaid Navitron volunteer,who has been living off-grid,powered by wind and solar,each year better than the last one.
