Author Topic: panel meters from china  (Read 7446 times)
camillitech
Hero Member
*****
Offline Offline

Posts: 5430



WWW
« on: November 21, 2007, 06:13:00 AM »

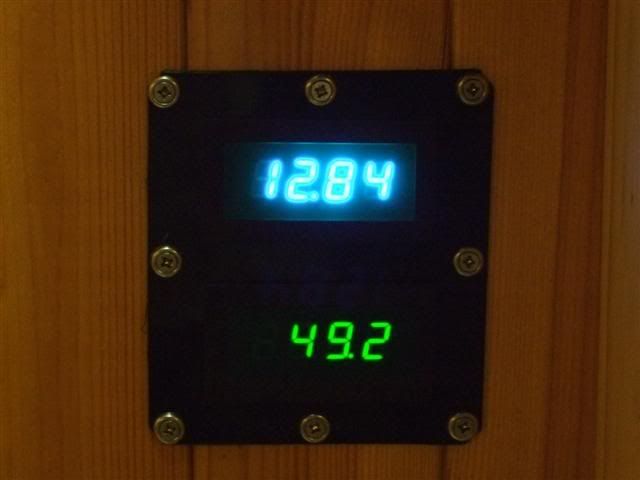

having 2 battery banks someway from the house and being a bit obsessed with them i got a couple of meters off eblag, having bought similar ones before from RS for 3 or 4 times the price i was well chuffed with the quality and speed  Wink




if i were to get more i'd go for the green as the blue is too  bright, though it's not as bright as it looks in the pic Cool

http://cgi.ebay.co.uk/3-1-2-Green-LED-Digital-Volt-Panel-Meter-DC-200-V_W0QQitemZ270158841937QQihZ017QQcategoryZ73158QQcmdZViewItem
Logged

http://lifeattheendoftheroad.wordpress.com/

'Off grid' since 1985,  Proven 2.5kW, Proven 6kW direct heating, SMA SI6.OH, 800ah Rolls, 8kW PV ,4xTS45, Lister HR2 12kW, , Powerspout pelton, Stream Engine turgo, 60 x Navitron toobs and a 1500lt store. Outback VFX3048 and 950ah forklifts for backup,
timbo
Jr. Member
**
Offline Offline

Posts: 71


« Reply #1 on: November 21, 2007, 07:22:01 PM »

Excellent...I just ordered two.

I am starting to care a lot about my batteries now..the Fork-lift battery is installed and looking good.

Tim
Logged

4m^2 wet solar panel, wood stoves. 10kW roof mount P.V. grid connected.
6kW Kingspan turbine expected soon.
Bob
Sr. Member
****
Offline Offline

Posts: 430


WWW
« Reply #2 on: January 01, 2008, 08:48:45 AM »

Hope you guys are right.  I just ordered a load of them, well 6, 4 shunts and a psu.  It is worth haggling a bit on the combined postage.  It started off as being more than the meters but came down very rapidly.

Regards

Bob
Logged

It's not what you make, it's what you use that counts!
camillitech
Hero Member
*****
Offline Offline

Posts: 5430



WWW
« Reply #3 on: January 01, 2008, 01:37:41 PM »

Hope you guys are right.  I just ordered a load of them, well 6, 4 shunts and a psu.  It is worth haggling a bit on the combined postage.  It started off as being more than the meters but came down very rapidly.

Regards

Bob

mine still going great bob and i actually prefer the blue now as it casts a nice light at night illuminating our hallway so strangers can find there way to the bathroom at night Cool
Logged

http://lifeattheendoftheroad.wordpress.com/

'Off grid' since 1985,  Proven 2.5kW, Proven 6kW direct heating, SMA SI6.OH, 800ah Rolls, 8kW PV ,4xTS45, Lister HR2 12kW, , Powerspout pelton, Stream Engine turgo, 60 x Navitron toobs and a 1500lt store. Outback VFX3048 and 950ah forklifts for backup,
Phil
Guest
« Reply #4 on: January 11, 2008, 03:41:47 PM »

Paul can you let me know the best way to wire one of these volt meters up please

    Phil
Logged
Paulh_Boats
Hero Member
*****
Offline Offline

Posts: 2824



WWW
« Reply #5 on: January 11, 2008, 05:05:41 PM »

Paul can you let me know the best way to wire one of these volt meters up please

    Phil

What me??

1) There is no indication the item is reverse power proof - so if you get +/- swapped you might blow it up!

2) If you have the 12 Volt version its easy... connect up the working power after checking +/- carefully.
    If you have a power supply check it carefully with a digital multimeter, verify correct voltage and +/-. Then connect working power.

    It should light up blue/green reading 0.00

3) For the voltmeter version connect the "measure inputs" as close to the load as possible. That will be the battery or dump load etc.
    For the ammeter version the shunt goes in series with the positive lead to the battery. Then the "measure inputs" connect to the ends of
    the shunt.

   NEVER connect the shunt across the battery. There will be a BIG flash, you might get burnt and you will jump a mile!

-Paul
Logged

30 tube thermal,
2.3kW PV see:
http://www.solarmanpv.com/portal/Terminal/TerminalMain.aspx?come=Public&pid=17067

LED lighting in every room
NO tumble dryer, +370 kWh per year
Phil
Guest
« Reply #6 on: January 11, 2008, 06:56:07 PM »

Thanks for that !

Logged
Paulh_Boats
Hero Member
*****
Offline Offline

Posts: 2824



WWW
« Reply #7 on: January 12, 2008, 05:42:08 PM »

Does anybody want to club together to order a load of these panel meters?

I emailed the supplier who offered a 50% shipping discount on additional items, but with a large order we could probably get a better deal. The LCD/LED meters are probably light and easy to post on in the UK or we could meet in a pub for a beer and chat!

Useful ranges to consider are:

Ammeters:
20A  For battery charging, PV currents

Voltmeters:
20V  For single batteries

200V  For multiple batteries and PV panels
Logged

30 tube thermal,
2.3kW PV see:
http://www.solarmanpv.com/portal/Terminal/TerminalMain.aspx?come=Public&pid=17067

LED lighting in every room
NO tumble dryer, +370 kWh per year
Bob
Sr. Member
****
Offline Offline

Posts: 430


WWW
« Reply #8 on: January 16, 2008, 06:57:51 AM »

I think clubbing together would be a great idea but as I live in Ireland it would be a bit far to your local, shame, I could do with a real pint!

I ordered mine from http://myworld.ebay.co.uk/giorgio11185.  He replies very quickly, does discounts, is very helpful but, and this is only a slight "but" after my meters arrived and I unpacked them the fitting instructions informed me that I would need a separate isolated power supply for each meter.  More expense, more waiting.

I would still recommend this man but be aware that you will need the power supplies as well.
Logged

It's not what you make, it's what you use that counts!
Paulh_Boats
Hero Member
*****
Offline Offline

Posts: 2824



WWW
« Reply #9 on: January 16, 2008, 08:53:13 AM »

Bob,

Yes a bit too far to stagger home.  Wink

I followed the link and its the same vendor that camillitech used. "Asia Engineer" is the ebay shop name.

cheers
Paul
Logged

30 tube thermal,
2.3kW PV see:
http://www.solarmanpv.com/portal/Terminal/TerminalMain.aspx?come=Public&pid=17067

LED lighting in every room
NO tumble dryer, +370 kWh per year
Phil
Guest
« Reply #10 on: January 18, 2008, 09:32:10 AM »

Does that mean you cant just power ther meter from the battery bank you are monitoring, even if the power input is 9-12volt Huh?
Logged
RichardKB
Sr. Member
****
Offline Offline

Posts: 450


« Reply #11 on: January 18, 2008, 09:45:55 AM »

Hi I have had this problem before in that the measuring pins are somehow related to its supply pins, they just do not read properly.

Rich
« Last Edit: January 18, 2008, 02:32:29 PM by RichardKB » Logged
Bob
Sr. Member
****
Offline Offline

Posts: 430


WWW
« Reply #12 on: January 18, 2008, 02:01:33 PM »

I don't know what causes the problem but you do need to purchase an isolated power supply for each meter you intend using.  The supplies are about 5 each.  I asked if it was possible to use one supply for several meters to be told that it isn't.  Just remember when ordering so you don't have to pay more postage.
Logged

It's not what you make, it's what you use that counts!
Paulh_Boats
Hero Member
*****
Offline Offline

Posts: 2824



WWW
« Reply #13 on: January 18, 2008, 03:13:42 PM »

I don't know what causes the problem but you do need to purchase an isolated power supply for each meter you intend using.  The supplies are about 5 each.  I asked if it was possible to use one supply for several meters to be told that it isn't.  Just remember when ordering so you don't have to pay more postage.

That probably means the inputs are not balanced or floating, like they would be on a multimeter. I expect that one input is connected to ground.

However it makes no sense why each meter needs its own supply unless the current from the supply is only just enough for one meter, in which case it would get overloaded and possibly cut-out if multiple meters were used.

Perhaps he is expecting you to read multiple and isolated voltages - with a common power ground some inputs may exceed the maximum voltage on one pin which could destroy the input stage. As I said before there are no specs on max/min values so its not possible to give a definative answer.

If your system has a common power ground and every meter negative input connected to it, it should be possible to use the same supply .

-Paul
Logged

30 tube thermal,
2.3kW PV see:
http://www.solarmanpv.com/portal/Terminal/TerminalMain.aspx?come=Public&pid=17067

LED lighting in every room
NO tumble dryer, +370 kWh per year
KenB
Hero Member
*****
Offline Offline

Posts: 2694


Energy Self Enlightenment


WWW
« Reply #14 on: January 18, 2008, 06:41:59 PM »

List,

I found some very cheap isolated dc/dc converters at Farnell yesterday. Ideal for powering these meters, when you need to keep them isolated from on another,and can't share a common ground on the power supply.

The ones I bought were from Traco Power for 4.90, you put 5V dc in and get 5V dc out - isolated (also available in 12V and 9V inputs and outputs).

http://uk.farnell.com/jsp/Electrical/Power+Supplies+&+Converters/TRACOPOWER/TMA+0505S/displayProduct.jsp?sku=1007511


Ken

Logged
