Hello Edna.
I think I can help with the configuration. It's slightly quirky in the way that you create a custom charge profile.

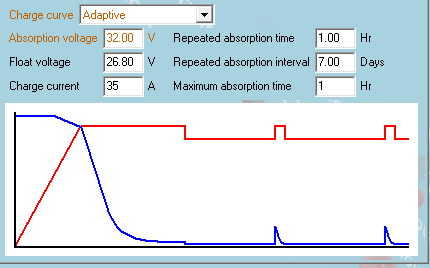

First, select the Charger tab in VE-Configure. Just above the graph, you should be able to type in the voltages which correspond to your battery parameters.
Note, as soon as you select the boxes on this page, another box pops up. The pop up box gives you information on the minimum and maximum values that can be applied for the particular parameter. Type in your values in the box and Select "OK". You'll see any altered values highlighted on orange on the main "Charger" tab. In my example I have altered the Absorbtion voltage value.
Once you have all of your parameters set to the appropriate values, you then need to apply them to a battery type. At the top right there is a box which displays the battery type. It should say "No corrosponding default" if you have applied your own parameters in the previous step.

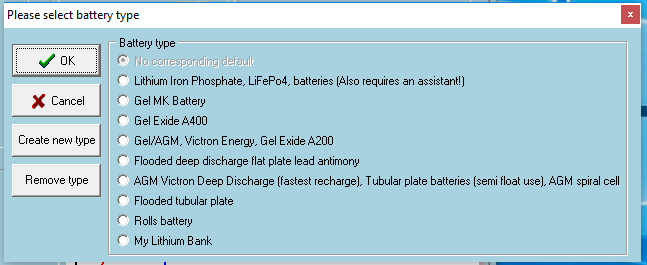

Click on "Battery type:" and you'll be presented with another window entitled "Please select battery type". The "No corresponding default" button should be automatically selected and greyed out.
Here is where you click on the third button down on the left, "Create new type"

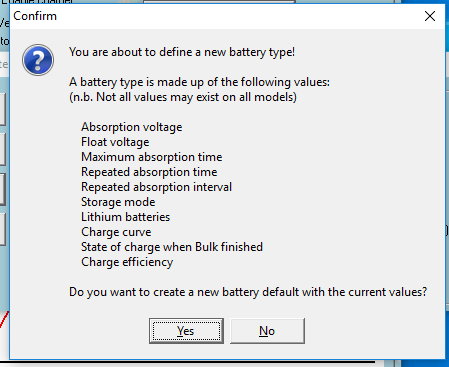

A confirmation window will pop up. Click on "Yes".
You'll then be presented with a window in which you can type in a name for your battery type. Click OK when you are ready.

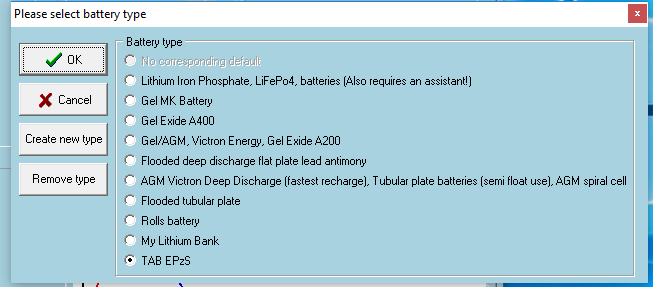

You are then sent back to the "Please select battery type" window where your newly created battery type should be selected at the bottom of the list. Click the OK button.

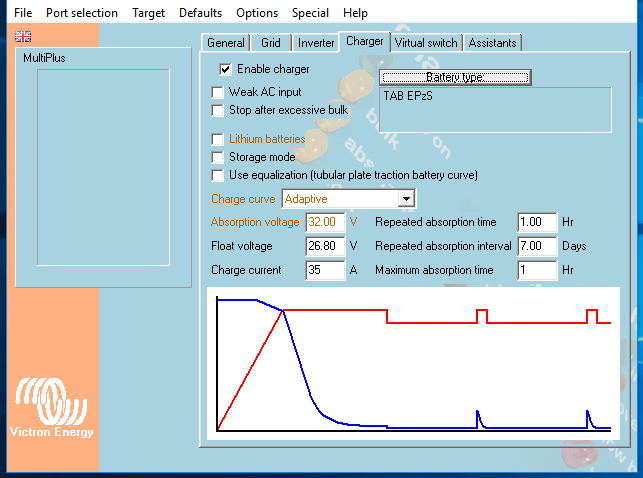

You'll then go back to the main "Charger" tab. Your parameters should all be correct and your battery type will be displayed at the top right corner.
Finally, click on the "Send settings" button at the bottom left of the window to program the settings into the Multiplus. (The "Send settings" button is not present in my example because I am not connected to my Multiplus, I'm running this example from a previously saved configuration file).
I hope this information is what you were after.
