Author Topic: Grid tie cost & advice  (Read 5626 times)
Adam
Sr. Member
****
Offline Offline

Posts: 252


« on: November 26, 2008, 08:12:41 AM »

Hi, at our farm we have an excellent site for a large wind turbine, over the last 3 years i have gained lots of experence from my own turbine and this forum so i am now tasting the water of the 6kw+ turbines for this site.

We are in the Northumberland national park and i have contacted our national park authority about this, they are not only in favour they are offering grants for business, i did ask if i needed to be an aproved installer to claim the grant and they didn't think so but the turbine would have to be a good quality unit.

The cable run would be approx 200m.

I have the grant application form so now i need to sort some figures and work out what it will cost, It would look good on the grant application form if i was useing a resonably localy made turbine so i contacted Proven 2 weeks ago through their website - no reply  Angry i don't want to chase them, they have a product to sell so they should chase me!

So i need=

1. Costs, i can work out most of them myself but any input would be appricated.
2. 6kw + turbine manufactures,

Logged
guydewdney
Hero Member
*****
Offline Offline

Posts: 4321



« Reply #1 on: November 26, 2008, 08:31:53 AM »

grid tie inverter for 6K is 3000 as near as dammit.

Trench - free (I assume you have a tractor...)

Cable - look it up on www.TLC.co.uk - there are various mentions of cable calculators. You have two options - turbine, long cable, inverter, mains - which works if the turbine is high voltage (200 - 600 volts) - or turbine, inverter, long cable, mains which is better if the turbine is low (48v or less) voltage.

Personally, I think the former is better for grid tie as there are less line losses, and less inverter losses (its easier to go from 300vDC to 230v AC than it is from 12v DC to 230V AC)

As to turbine - 'proven' seems to be a well respected 'tough' turbine. Not the best performace, but bomb proof. They might be OTT for you - as I assume its not that stormy where you are?
Logged

Pic of wheel on day 1
7.2kW Waterwheel and 9.8kW PV
Ted
Global Moderator
Hero Member
*****
Offline Offline

Posts: 3908



« Reply #2 on: November 26, 2008, 10:09:07 AM »

Probably pointless to try Proven direct these days. You need to contact one of their local (to you) installers.

Try:

Turbine Services
Cockermouth, CA13 9TL
01900 85616
http://www.turbineservices.co.uk/

or

Sundog
Penrith, CA11 0LF
017684 82282
http://www.sundog-energy.co.uk/
Logged

Volunteer moderator
Adam
Sr. Member
****
Offline Offline

Posts: 252


« Reply #3 on: November 26, 2008, 06:17:43 PM »

Cheers Ted, that's just what i'm looking for Wink Will contact them tomorrow.

The site is very exposed with no obstruction's and is ontop of a hill approx 1200ft, it need's a strong "fit & forget" turbine and it will be a high voltage unit.

I know it will cost, but i'm looking at it as an investment and hoping for some grant, and possably some help from our landlord as they seem very enthusiastic.
Logged
Adam
Sr. Member
****
Offline Offline

Posts: 252


« Reply #4 on: November 30, 2008, 10:12:20 PM »

Contacted the installers, great advice, estimated price is exactly what i expected (thats me doing all the groundworks)

Forgot to ask Roll Eyes.....What protects the turbine when the mains go's off, if the turbine is running where does the power go when the inverter disconnect's it?
Logged
Fiat
Full Member
***
Offline Offline

Posts: 178


« Reply #5 on: December 01, 2008, 06:40:29 AM »


Hi I have been advised to put in a 9kw dump load braking resistor 16 ohm on a 5kw turbine Frank
Logged
Adam
Sr. Member
****
Offline Offline

Posts: 252


« Reply #6 on: December 01, 2008, 08:40:26 PM »

Thought so, so there must be some sort of controller?

Do you have a dump load & controller on your Proven grid tie Ted?
Logged
Adam
Sr. Member
****
Offline Offline

Posts: 252


« Reply #7 on: December 02, 2008, 08:10:54 PM »

Pic's of proposed wind turbine site Grin

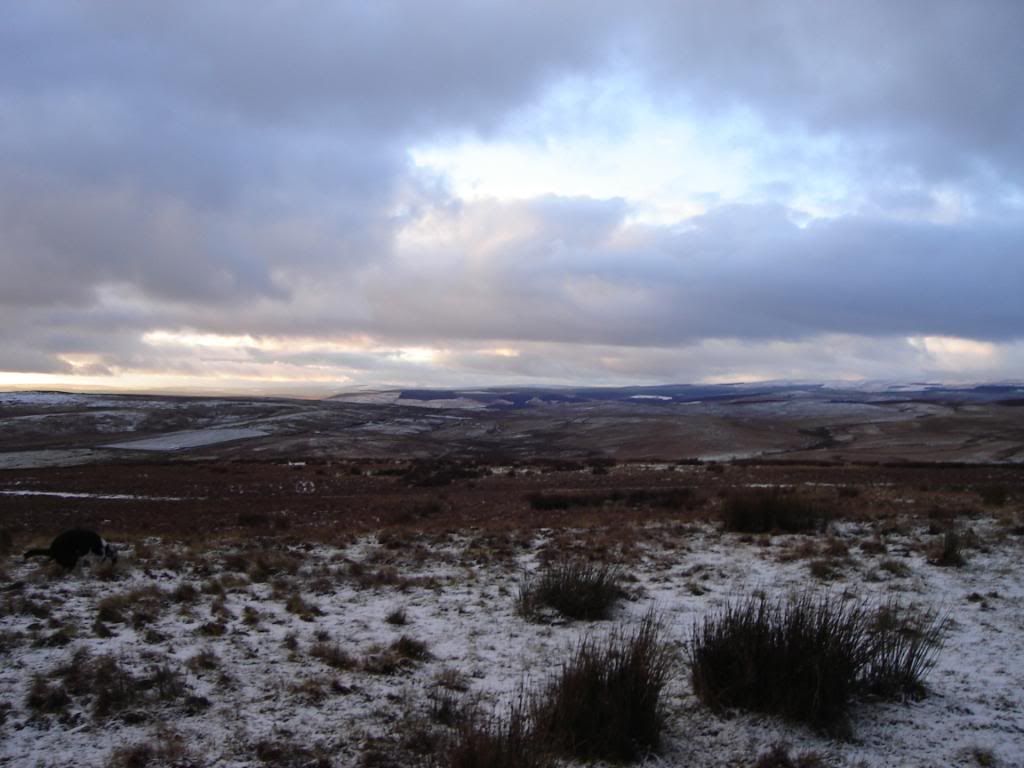

West, (did not notice the dog when i took the pic Roll Eyes)


North


East


South


Site is 410 meters away from house, quite a run for a cable
Logged
Ivan
Guest
« Reply #8 on: December 03, 2008, 12:58:27 AM »

I had to look twice!

Looks like the dog is taking care of the dump load.
Logged
Billy
Guest
« Reply #9 on: December 03, 2008, 07:18:02 AM »

Oh, good, very good

 Grin Grin Grin
Logged
kristen
Hero Member
*****
Offline Offline

Posts: 2022


« Reply #10 on: December 03, 2008, 09:08:41 AM »

"I had to look twice!"

Probably best not to admit it then ... Cheesy
Logged
billi
Global Moderator
Hero Member
*****
Offline Offline

Posts: 8944



WWW
« Reply #11 on: December 03, 2008, 09:40:21 AM »

Quote
Looks like the dog is taking care of the dump load

Looks like a 2 way dump  Grin


But Adam that site looks good for wind  is it in ther reagion of 6 m/s -7 anual windspeed ?

Billi
Logged

1.6 kw and 2.4 kw   PV array  , Outback MX 60 and FM80 charge controller  ,24 volt 1600 AH Battery ,6 Kw Victron inverter charger, 1.1 kw high head hydro turbine as a back up generator , 5 kw woodburner, 36 solar tubes with 360 l water tank, 1.6 kw  windturbine
Adam
Sr. Member
****
Offline Offline

Posts: 252


« Reply #12 on: December 03, 2008, 09:23:37 PM »

 Grin Grin Grin

I have taken no record but i have been told by an installer that the windspeed for my area is 6.5m/s and i'm to expect 10,000 - 12,000 kwh's per year Grin which seems very high.

There has been proposals for 2 large wind farms to the east and west of us, one of which has test masts and test hole's, so i expect we do have a good wind speed.

I'm still working my way through the paperwork for the grant Roll Eyes  next - planning bike
Logged
Adam
Sr. Member
****
Offline Offline

Posts: 252


« Reply #13 on: October 06, 2010, 07:53:59 PM »

I have planning  Grin Grin Grin
Logged
Billy
Guest
« Reply #14 on: October 06, 2010, 08:31:38 PM »

for the windmill or the methane recovery from the dog poo?

nice one, well done.

Billy

 Grin
